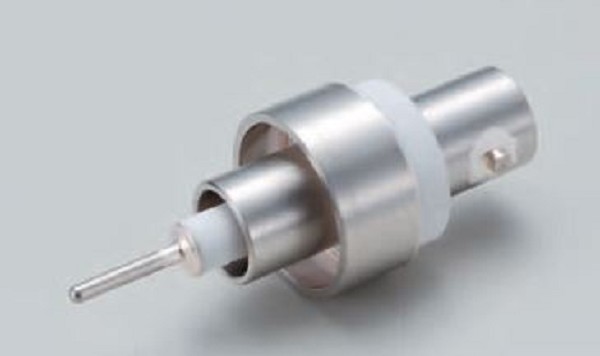

Coaxial, SHV-R-F, 50 OHM, Single Ended - Floating Shield, Weld

Coaxial, SHV-R-F, 50 OHM, Single Ended - Floating Shield, Weld

Group number: C012.0W
Description:Coaxial, SHV-R-F, 50 OHM, Single Ended - Floating Shield, Weld

Downloads

Spec sheet

Extra information

• Frequency MHz: D.C or A.C100 (MHz) max
• Leak Rate: 10-10 mbar l/sec
• Temp. Range: -196°C to +300°C
We also offer more connectors on different flange sizes. Ask for a quotation.

CodeFlangePinsVolt.AMPSPrice ex.Qty
90162-C-WWeld16 kV DC (Shell-to-Flange 1kV DC)3
On request
 ×1
