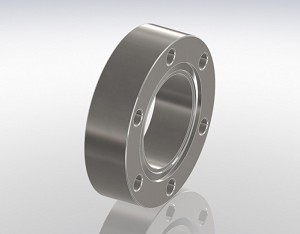

Flanges Double Sided Bored and Double Sided Tapped, Stainless Steel 304

Group number:	CF037
Description:	Flanges Double Sided Bored and Double Sided Tapped, Stainless Steel 304

D = Tube Size Tollerance + 0.2 / + 0.5
T = Tapped
Other thickness on request

Code	Flange	D (D size)	B	T	Material	Type 2	Price ex.	Qty
CF16/16D	NW16CF	16	4.4	7.6	SST304	.	€ 19,00	×1
CF16/16DT	NW16CF	16	M4	7.6	SST304	Tapped	€ 32,00	×1
CF35/38D	NW35CF	38.1	6.7	19	SST304	.	€ 25,00	×1
CF35/38DT	NW35CF	38.1	M6	19	SST304	Tapped	€ 33,00	×1
CF63/64D	NW63CF	63.5	8.4	17.4	SST304	.	€ 89,00	×1
CF63/64DT	NW63CF	63.5	M8	17.4	SST304	Tapped	€ 87,50	×1
CF100/100D	NW100CF	101.6	8.4	19.8	SST304	.	€ 195,00	×1
CF100/100DT	NW100CF	101.6	M8	19.8	SST304	Tapped	€ 148,00	×1
CF150/150D	NW150CF	152.4	8.4	22.2	SST304	.	€ 170,00	×1
CF150/150DT	NW150CF	152.4	M8	22.2	SST304	Tapped	On request	×1
CF200/200D	NW200CF	203.2	8.4	24.6	SST304	.	€ 300,00	×1
CF200/200DT	NW200CF	203.2	M8	24.6	SST304	Tapped	€ 280,00	×1
CF250/250D	NW250CF	254	8.4	25.9	SST304	.	On request	×1
CF250/250DT	NW250CF	254	M8	25.9	SST304	Tapped	On request	×1
CF300/300D	NW300CF	304.8	10.5	28.3	SST304	.	On request	×1
CF300/300DT	NW300CF	304.8	M10	28.3	SST304	Tapped	On request	×1

= in stock. = out of stock.
