Edge welded Bellows

Order products below by E-mail

Picture Discription Qty. Price Each

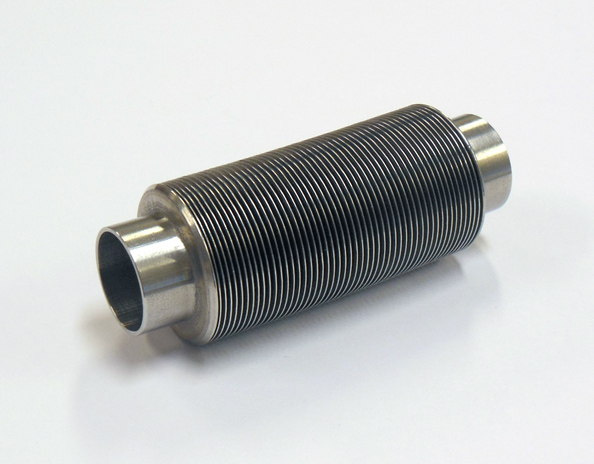

Part Number: HO37-12-1.2-EE

Segments (1 Seg= 10 convolutions):1.2
OD   9.5 mm
ID     3.2 mm
End Style EE

For more detailed information:
Edge Welded Bellows


 2


€ 220



Order

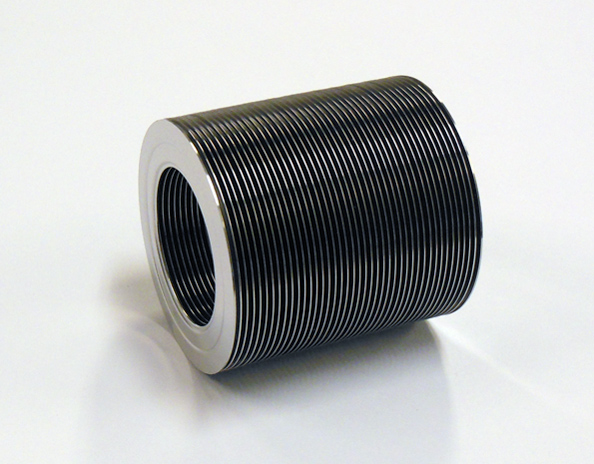

Part Number: HO50-19-2.5-BB

Segments (1 Seg= 10 convolutions): 2.5
OD   12.7 mm
ID      4.8 mm
End Style BB

For more detailed information:
Edge Welded Bellows


 1


€280



Order



Part Number: HO75-25-2.1-BE

Segments (1 Seg= 10 convolutions):2.1
OD    19.05mm
ID      6.35mm
End Style BE

For more detailed information:
Edge Welded Bellows


 1

€220



Order

  Part Number: HO84-52-1.6-BB

Segments (1 Seg= 10 convolutions):1.6
OD    21.2mm
ID      13.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1
€110



Order

  Part Number: HO84-52-1.8-BB

Segments (1 Seg= 10 convolutions):1.8
OD    21.2mm
ID      13.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 2
€120



Order

  Part Number: HO84-52-2.0-BB

Segments (1 Seg= 10 convolutions):2.0
OD    21.2mm
ID      13.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1
€160




Order

  Part Number: HO84-52-3.4-BB

Segments (1 Seg= 10 convolutions):3.4
OD    21.2mm
ID      13.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1
€200



Order

  Part Number: HO84-52-3.8-BE

Segments (1 Seg= 10 convolutions):3.8
OD    21.2mm
ID      13.1mm
End Style BE

For more detailed information:
Edge Welded Bellows

 3
€215



Order

  Part Number: HO84-52-4.0-BB

Segments (1 Seg= 10 convolutions):4.0
OD    21.2mm
ID      13.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1
€200



Order

  Part Number: HO84-52-4.0-BE

Segments (1 Seg= 10 convolutions):4.0
OD    21.2mm
ID      13.1mm
End Style BE

For more detailed information:
Edge Welded Bellows

 5 €200




Order
  Part Number: HO84-52-6.4-BB

Segments (1 Seg= 10 convolutions):6.4
OD    21.2mm
ID      13.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 2 €240




Order
  Part Number:HO103-55-6.4-BB

Segments (1 Seg= 10 convolutions):6.4
OD    26.2mm
ID      13.97mm
End Style BB

For more detailed information:
Edge Welded Bellows

 3 €200




Order

  Part Number: HO103-55-5.2BB

Segments (1 Seg= 10 convolutions):5.2
OD    26.2mm
ID      13.97mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1
€200



Order

  Part Number: HO112-50-5.0-EE

Segments (1 Seg= 10 convolutions):5.0
OD    28.6mm
ID      12.7mm
End Style EE

For more detailed information:
Edge Welded Bellows

 1 €350




Order

  Part Number: HO138-83-1.8-BB

Segments (1 Seg= 10 convolutions):1.8
OD    34.9mm
ID      21.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1 €275




Order



Part Number: HO150-96-9.0-BB

Segments (1 Seg= 10 convolutions):9.0
OD    38.1mm
ID      24.4mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1  €495




Order

  Part Number: HO189-139-4.4-BB
Free Length 41.6 mm
Segments (1 Seg= 10 convolutions):4.4
OD    48.0mm
ID      35.3mm
End Style BB

For more detailed information:
Edge Welded Bellows
 1  €350




Order

  Part Number: HO189-139-4.4-BB
Free Length 55.0 mm
Segments (1 Seg= 10 convolutions):4.4
OD    48.0mm
ID      35.3mm
End Style BB

For more detailed information:
Edge Welded Bellows
  1 €350




Order

  Part Number: HO189-139-9.2-BB
Free Length 85.8 mm
Segments (1 Seg= 10 convolutions):9.2
OD    48.0mm
ID      35.3mm
End Style BB

For more detailed information:
Edge Welded Bellows
 1 €600




Order

  Part Number: HO189-139-9.2-BB
Free Length 101.7 mm
Segments (1 Seg= 10 convolutions):9.2
OD    48.0mm
ID      35.3mm
End Style BB

For more detailed information:
Edge Welded Bellows
 2 €600




Order

  Part Number: HO189-139-9.2-BB
Free Length 122.4 mm
Segments (1 Seg= 10 convolutions):9.2
OD    48.0mm
ID      35.3mm
End Style BB

For more detailed information:
Edge Welded Bellows
 1 €600




Order

  Part Number: HO200-125-4.1-BB

Segments (1 Seg= 10 convolutions):4.1
OD    50.8mm
ID      31.8mm
End Style BB

For more detailed information:
Edge Welded Bellows

  5 €350




Order
  Part Number: HO200-125-4.2-BB

Segments (1 Seg= 10 convolutions):4.2
OD    50.8mm
ID      31.8mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1  €350




Order

  Part Number: HO200-125-5.6-BB

Segments (1 Seg= 10 convolutions):5.6
OD    50.8mm
ID      31.8mm
End Style BB

For more detailed information:
Edge Welded Bellows

 2 €375




Order

  Part Number: HO200-125-7.0-BB

Segments (1 Seg= 10 convolutions):7.0
OD    50.8mm
ID      31.8mm
End Style BB

For more detailed information:
Edge Welded Bellows

  1
€450



Order

  Part Number: HO200-125-9.2-BB

Segments (1 Seg= 10 convolutions):9.2
OD    50.8mm
ID      31.8mm
End Style BB

For more detailed information:
Edge Welded Bellows

 2 €500




Order

  Part Number: HO220-104-9.1-BE

Segments (1 Seg= 10 convolutions):9.1
OD    55.9mm
ID      26.4mm
End Style BE

For more detailed information:
Edge Welded Bellows

 2
€510



Order

  Part Number: HO220-104-9.2-BE

Segments (1 Seg= 10 convolutions):9.2
OD    55.9mm
ID      26.4mm
End Style BE

For more detailed information:
Edge Welded Bellows

 1 €510




Order

  Part Number: HO220-140-10.5-EE
Free Length 170.0mm
Segments (1 Seg= 10 convolutions):10.5
OD    55.9mm
ID      35.6mm
End Style EE

For more detailed information:
Edge Welded Bellows
 1  €500




Order

  Part Number: HO220-140-10.5-EE
Free Length 195.0mm
Segments (1 Seg= 10 convolutions):10.5
OD    55.9mm
ID      35.6mm
End Style EE

For more detailed information:
Edge Welded Bellows
 2 €500




Order

  Part Number: HO220-140-2.1-BB

Segments (1 Seg= 10 convolutions):2.1
OD    55.9mm
ID      35.6mm
End Style BB, 57.2mm

For more detailed information:
Edge Welded Bellows

 1 €400




Order

  Part Number: HO220-140-7.6-BB

Segments (1 Seg= 10 convolutions):7.6
OD    55.9mm
ID      35.6mm
End Style BB, 60.3mm

For more detailed information:
Edge Welded Bellows

 1 €530




Order

  Part Number: HO225-150-7.6-BB

Segments (1 Seg= 10 convolutions):7.6
OD    57.2mm
ID      38.1mm
End Style BB

For more detailed information:
Edge Welded Bellows

 1 €550




Order

  Part Number: HO225-175-11.2-BB

Segments (1 Seg= 10 convolutions):11.0
OD    57.2mm
ID      44.5mm
End Style: machined BB 58.7mm

For more detailed information:
Edge Welded Bellows

 3 €740



Order

  Part Number: HO225-175-11.4-BB

Segments (1 Seg= 10 convolutions):11.0
OD 57.2mm
ID 44.5mm
End Style: machined BB 58.7mm

For more detailed information:
Edge Welded Bellows

 1 €750
Order

  Part Number: HO249-153-4.2-BB

Segments (1 Seg= 10 convolutions):4.2
OD    63.3mm
ID      38.9mm
End Style BB

For more detailed information:
Edge Welded Bellows

  7
€450



Order

Part Number: HO350-250-1.3-CC

Segments (1 Seg= 10 convolutions):1.3
OD    88.9mm
ID      63.5mm
End Style EE

For more detailed information:
Edge Welded Bellows


 1  €400




Order

    P/N: HO350-285-FF-18

Segments (1 Seg= 10 convolutions): 18

Bellow OD: 88.9
Bellow ID: 72.39

Material: A-350 SS

F-Style 88.9 Diameter x 0.38 Thick x

0.38 Long both ends

237.7mm Axial Stroke

75.2 mm Compressed Length

(Including F-Styles)

212.3 mm Free Length (Including

F-Styles) (Approx.)

312.9 mm Extended Length

(Including F-Styles)

For more detailed information:
Edge Welded Bellows

 1
€2500
Order



Part Number

Segments (1 Seg= 10 convolutions):
OD    mm
ID      mm
End Style

For more detailed information:
Edge Welded Bellows

 ..




Order


   Prices ex. VAT
