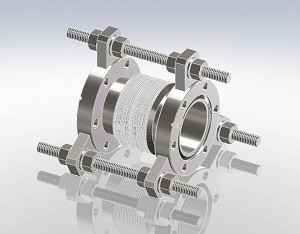

Edge Welded Bellows With Alignment Studs

Group number:	CF078
Description:	Edge Welded Bellows With Alignment Studs

Edge welded Bellows are available with special length and/or special Flanges
Please specify needed length, axial and (lateral) stroke and flanges.

Code	Flange	D (D size)	D1 (OD size)	D2 (ID size)	L (Comp)	L (Extd)	Stroke	Price ex.	Qty
CF16/SEWB	NW16CF	19.05	31.7	15.9	41.9	55.6	13.7	€ 425,00	×1
CF35/SEWB	NW35CF	41.3	52.4	39.7	51.3	72	20.7	€ 595,00	×1
CF35/SEWB 316L	NW35CF	41.3	52.4	39.7	47.1	67.9	20.8	On request	×1
CF63/SEWB	NW63CF	70	88.9	63.5	69.7	96.8	27.1	€ 755,00	×1
CF100/SEWB	NW100CF	108	126.2	101.6	85.7	111.8	26.1	€ 1.195,00	×1
CF150/SEWB	NW150CF	152.4	190.5	146.3	88.9	115.9	27	€ 1.495,00	×1
CF200/SEWB	NW200CF	203.2	223.5	197.1	94.4	121	26.7	€ 2.110,00	×1

= in stock. = out of stock.
