/ CF Flanges / Reducers, Tees, Crosses, Elbows / Crosses

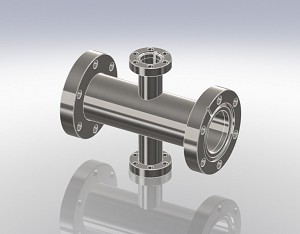

Cross Reducer 4-Way

Cross Reducer 4-Way

Group number:	CF070
Description:	Cross Reducer 4-Way

Extra information

Other versions and size available on request.

Code	Flange	D (D size)	L	L1	Material	Price ex.	Qty
FXR35/16R	NW35CF > NW16CF	38.1	62.7	50	SST 304	€ 123,00	×1
FXR63/16R	NW63CF > NW16CF	63.5	104.8	50	SST 304	€ 246,00	×1
FXR63/35R	NW63CF > NW35CF	63.5	104.8	75	SST 304	€ 280,00	×1
FXR100/35R	NW100CF > NW35CF	101.6	134.9	90	SST 304	€ 540,00	×1
FXR100/63R	NW100CF > NW63CF	101.6	134.9	99.2	SST 304	€ 700,00	×1
FXR150/35R	NW150CF > NW35CF	152.4	166.7	110	SST 304	€ 625,00	×1
FXR200/150R	NW200CF > NW150CF	203.2	203.2	150	SST 304	€ 1.995,00	×1
FXR250/150R	NW250CF > NW150CF	254	254	220	SST 304	€ 2.375,00	×1
FXR63/35R 316L	NW63CF > NW35CF	63.5	104.8	75	SST 316L	€ 395,00	×1
FXR35/16R 316L	NW35CF > NW16CF	38.1	62.7	50	SST 316L	€ 325,00	×1

= in stock. = out of stock.
