/ CF Flanges / Reducers, Tees, Crosses, Elbows / Reducers

Tees Reducer and Reducer Rotatable

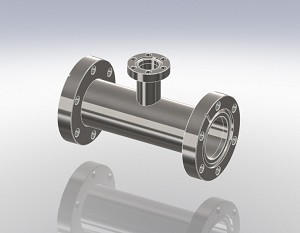

Tees Reducer and Reducer Rotatable

Group number:	CF066
Description:	Tees Reducer and Reducer Rotatable

Extra information

Other version and sizes available on request.

Code	Flange	D (D size)	L	L1	Material	Price ex.	Qty
FTR35/16R	NW35CF > NW16CF	38.1	62.7	50	SST 304	€ 125,00	×1
FTR63/16R	NW63CF > NW16CF	63.5	104.8	50	SST 304	€ 245,00	×1
FTR63/35R	NW63CF > NW35CF	63.5	104.8	75	SST 304	€ 273,00	×1
FTR100/35R	NW100CF > NW35CF	101.6	134.9	90	SST 304	€ 398,00	×1
FTR100/63R	NW100CF > NW63CF	101.6	134.9	90	SST 304	€ 450,00	×1
FTR150/35R	NW150CF > NW35CF	154	166.7	110	SST 304	€ 638,00	×1
FTR150/63R	NW150CF > NW63CF	154	166.7	127	SST 304	On request	×1
FTR200/35R	NW200CF > NW35CF	203.2	203.2	152.4	SST 304	On request	×1
FTR200/63R	NW200CF > NW63CF	203.2	203.2	152.4	SST 304	On request	×1
FTR35/16R 316L	NW35CF > NW16CF	38.1	62.7	50	SST 316L	€ 165,00	×1
FTR35/16RN	NW35CF > NW16CF	38.1	62.7	50	SST 316LN ESR	€ 279,00	×1
FTR150/35RN	NW150CF > NW35CF	154	166.7	110	SST 316LN ESR	€ 1.311,00	×1

= in stock. = out of stock.
