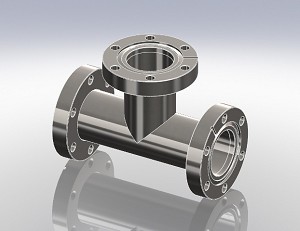

Tees Equal and Equal Rotatable

Group number:	CF064
Description:	Tees Equal and Equal Rotatable

R = each axis 1x Rotatable
N = 316LN

Code	Flange	D (D size)	L	Material	Price ex.	Qty
FT16/19	NW16CF	19.05	38.1	SST 304	€ 70,00	×1
FT16/19R	NW16CF	19.05	38.1	SST 304	€ 77,00	×1
FT35/38	NW35CF	38.1	62.7	SST 304	€ 132,00	×1
FT35/38R	NW35CF	38.1	62.7	SST 304	€ 139,00	×1
FT35/43R	NW35CF	42.4	62.7	SST 304	€ 192,50	×1
FT63/64	NW63CF	63.5	104.8	SST 304	€ 282,00	×1
FT63/64R	NW63CF	63.5	104.8	SST 304	€ 350,00	×1
FT100/100	NW100CF	101.6	134.9	SST 304	€ 525,00	×1
FT100/100R	NW100CF	101.6	134.9	SST 304	€ 575,00	×1
FT150/150	NW150CF	154	166.7	SST 304	On request	×1
FT150/150R	NW150CF	154	166.7	SST 304	On request	×1
FT200/200	NW200CF	204	203.2	SST 304	On request	×1
FT200/200R	NW200CF	204	203.2	SST 304	On request	×1
FT16/19 316L	NW16CF	19.05	38.1	SST 316L	€ 120,00	×1
FT16/19R 316L	NW16CF	19.05	38.1	SST 316L	€ 102,00	×1
FT35/38 316L	NW35CF	38.1	62.7	SST 316L	€ 205,00	×1
FT35/38R 316L	NW35CF	38.1	62.7	SST 316L	€ 275,00	×1
FT100/100R 316L	NW100CF	101.6		SST 316L	€ 550,00	×1
FT16/19RN	NW16CF	19.05	38.1	SST 316LN/316L	€ 125,00	×1
FT35/38N	NW35CF	38.1	62.7	SST 316LN	€ 260,00	×1
FT35/38RN	NW35CF	38.1	62.5	SST 316LN/316L	€ 297,00	×1
FT63/64RN	NW63CF	63.5	104.8	SST 316LN/316L	€ 626,00	×1
FT100/100RN	NW100CF	101.6	134.9	SST 316LN/316L	€ 1.020,00	×1
FT150/150RN	NW150CF	154	167	SST 316LN/316L	€ 1.878,00	×1

= in stock. = out of stock.
