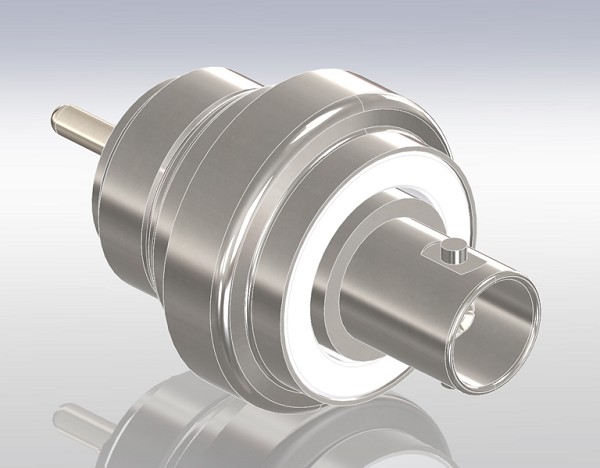

Coaxial, BNC, Frequency/Single Ended Floating Shield, Weld

Extra information

Specifications: Between Series
Materials
Housing: 52 Nickel Iron
Pin: 304 Stainless steel
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: Yes
Voltage Rating Pin/ Shield: 500 V DC, Shield/ Gnd: 2.5 kV DC
Current Rating 3.6 Amps
Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
300 PSIG (20 Bar), ISO KF 0 PSIG
Leak Rate <1x10-10 atm-cc/sec (He)
