/ Electrical Feedthroughs / Coaxial / BNC

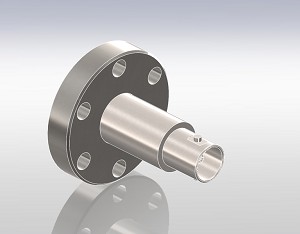

Coaxial, BNC, Frequency/Single Ended Grounded Shield, Conflat Flange

Coaxial, BNC, Frequency/Single Ended Grounded Shield, Conflat Flange

Group number: C004.11
Description:Coaxial, BNC, Frequency/Single Ended Grounded Shield, Conflat Flange

Extra information

Specifications:
Materials:
Housing: 304 Stainless steel
Pin: 304 Stainless steel
Insulation: Alumina ceramic
Magnetic Materials: No
Voltage Rating: 500 V DC
Current Rating: 3.6 Amps
Temperature Range: -269°C to 450°C, ISO KF -25°C to 205°C
Pressure @ 20°C 1400 PSIG (97 Bar), ISO KF 0 PSIG

CodeFlangePinsPrice ex.Qty
5822-04-CFNW35CF2
€ 179,50
 ×1
6647-04-CFNW35CF3
€ 242,00
 ×1
7184-05-CFNW35CF4
€ 305,00
 ×1
7592-02-CFNW35CF1
€ 116,50
 ×1
7593-02-CFNW16CF1
€ 105,50
 ×1
= in stock. = out of stock.
