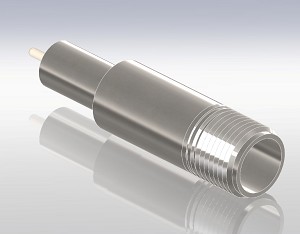

Coaxial,BSHV, 7.5 KV/Single Ended - Grounded Shield, Weld

Extra information

Specifications:
Materials:
. Housing: 304 Stainless steel
. Pin: Nickel
. Insulation: Alumina ceramic
. Flange: 304 stainless steel
. Magnetic Materials: Yes
Voltage Rating 7.5 kV DC
Current Rating 16.5 Amps
Temperature Range
. -269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
. See table
Leak Rate <1x10-10 mbar L/s (He)
