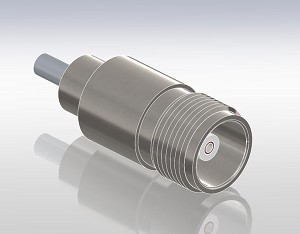

Coaxial, HN, 50 OHM- High Frequency, Weld

Extra information

Specifications:
Materials:
Housing: 304 Stainless steel
Pin: 70/30 Copper Nickel
Insulation: Alumina Ceramic
Flange: 304 Stainless steel
Magnetic Materials: No
Voltage Rating: 7 kV DC
Current Rating: 7 Amps
Temperature Range:
-269º C to 450º C, ISO KF 0 PSIG
Pressure @ 20ºC:
320 PSIG (22 Bar), ISO KF 0 PSIG
Leak Rate <1x10-10 mbar L/s (He)
