Coaxial, MHV, Single Ended - Grounded Shield, ISO-KF Flange

Group number:	C005.1
Description:	Coaxial, MHV, Single Ended - Grounded Shield, ISO-KF Flange

Extra information

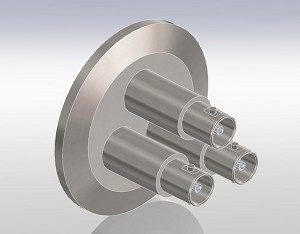

Picture is an Example

Specifications:
• Materials:
..Housing: 304 SST
..Pin: 304 SST
..Insulation: Alumina Ceramic
• Temperature Range: -269ºC to 450ºC / ISO KF -25ºC to 205ºC
• Pressure @20ºC 1400 PSIG, 97 BAR / ISO KF 0

Code	Flange	Material	Pins	Volt.	AMPS	Temp. Min.	Temp. Max.	Price ex.	Qty
17114-03-KF	NW16KF	Magn Mat: No	1	5 kV DC	3.6	-25	205	€ 123,50	×1
17114-07-KF	NW40KF	Magn Mat: No	1	5 kV DC	3.6	-25	205	€ 115,50	×1
17136-03-KF	NW40KF	Magn Mat: No	2	5 kV DC	3.6	-25	205	€ 178,50	×1
17137-03-KF	NW40KF	Magn Mat: No	3	5 kV DC	3.6	-25	205	€ 241,50	×1
17138-03-KF	NW40KF	Magn Mat: No	4	5 kV DC	3.6	-25	205	€ 304,00	×1

= in stock. = out of stock.
