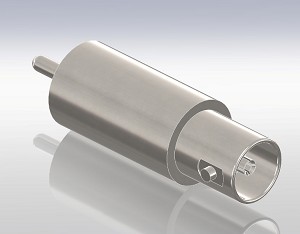

Coaxial, MHV, Single Ended - Grounded Shield, Weld

Extra information

Specifications:
Materials:
. Housing: 304 Stainless steel
. Pin: 304 Stainless steel
. Insulation: Alumina ceramic
. Flange: 304 Stainless steel
. Magnetic Materials: No
Voltage Rating 5 kV DC
Current Rating 3.6 Amps
Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
1400 PSIG (97 Bar), ISO KF 0 PSIG
Leak Rate <1x10-10 mbar L/s (He)
