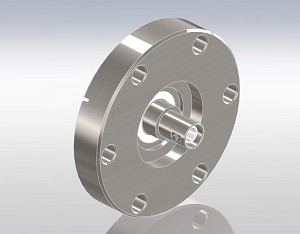

Coaxial, SHV 5kV, Single Ended - Floating Shield, CF Flange

Coaxial, SHV 5kV, Single Ended - Floating Shield, CF Flange

Group number: C006.32
Description:Coaxial, SHV 5kV, Single Ended - Floating Shield, CF Flange

Extra information

Specifications:
• Materials
.. Housing: 304 Stainless steel
.. Pin: Nickel
.. Insulation: Alumina ceramic
.. Flange: 304 Stainless steel
.. Magnetic Materials: Yes
• Voltage Rating Pin/ Shield: 5 kV DC, Shield/ Gnd: 2.5 kv DC
• Current Rating 16.5 Amps
• Temperature Range
.. -269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
.. 300 PSIG ( 20 Bar), ISO KF 0 PSIG
Leak Rate <1x10-10 mbar L/s (He)

CodeFlangeType 1Volt.AMPSBarPSIGTemp. Min.Temp. Max.Price ex.Qty
21304-01-CFNW35CFShield/Gnd 2.5 kV DC5 kV DC16.520300-269450
On request
 ×1
= in stock. = out of stock.
