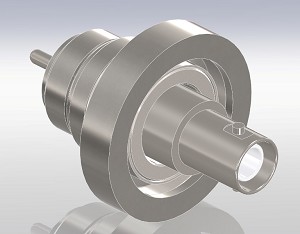

Coaxial, SHV 5kV, Single Ended - Floating Shield Weld

Extra information

Specifications:
• Materials
.. Housing: 304 Stainless steel
.. Pin: Nickel
.. Insulation: Alumina ceramic
.. Flange: 304 Stainless steel
.. Magnetic Materials: Yes
• Voltage Rating Pin/ Shield: 5 kV DC, Shield/ Gnd: 2.5 kv DC
• Current Rating 16.5 Amps
• Temperature Range
.. -269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
.. 300 PSIG ( 20 Bar), ISO KF 0 PSIG
Leak Rate <1x10-10 mbar L/s (He)
