/ Electrical Feedthroughs / Coaxial / SHV 50 Ohm

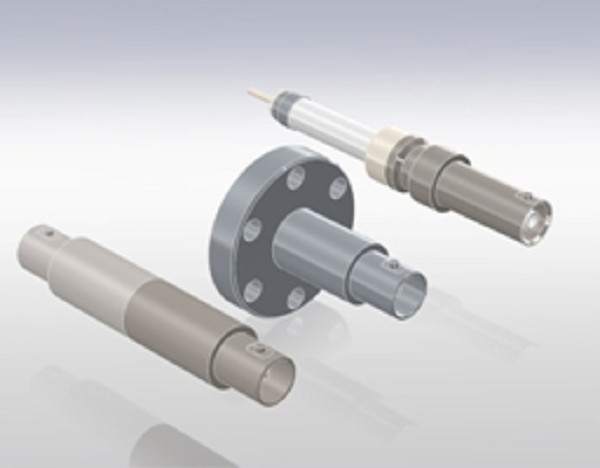

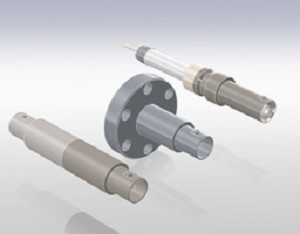

Coaxial, SHV-R, 50 OHM, Single Ended - Grounded Shield, Conflat Flange

Coaxial, SHV-R, 50 OHM, Single Ended - Grounded Shield, Conflat Flange

Group number: C009.41
Description:Coaxial, SHV-R, 50 OHM, Single Ended - Grounded Shield, Conflat Flange

Downloads

Spec sheet

Extra information

• Frequency MHz: D.C or A.C100 (MHz) max
• Leak Rate: 10-10 mbar l/sec
• Temp. Range: -196°C to +300°C
We also offer more connectors on different flange sizes. Ask for a quotation.

CodeFlangePinsVolt.AMPSPrice ex.Qty
17847-01-CFNW16CF16 kV DC3
€ 207,00
 ×1
17848-01-CFNW35CF16 kV DC3
€ 213,00
 ×1
= in stock. = out of stock.
