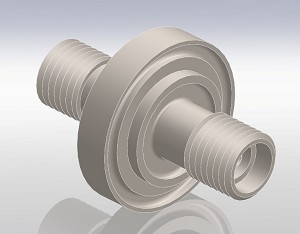

Coaxial, SMA, 50 OHM High Frequency, Double Ended - Grounded Shield, Weld

Coaxial, SMA, 50 OHM High Frequency, Double Ended - Grounded Shield, Weld

Group number: C003.15
Description:Coaxial, SMA, 50 OHM High Frequency, Double Ended - Grounded Shield, Weld

Extra information

Specifications:
• Materials
.. Housing: 304 Stainless steel
.. Pin: Inconel X - 750
.. Insulation: Glass-ceramic
.. Magnetic Materials: No
.. Contacts: 300 Series Stn. Stl.
• Voltage Rating 500 V DC
• Current Rating 1 Amp
• Temperature Range
.. -269 º C to 350 º C, ISO KF -25 º C to 205 º C
• Pressure @ 20ºC
.. 1400 PSIG (97 Bar), ISO KF 0 PSIG
• Leak Rate <1x10-10 mbar L/s (He)

CodeFlangePinsPrice ex.Qty
15263-03-WWeld1
€ 307,50
 ×1
= in stock. = out of stock.
