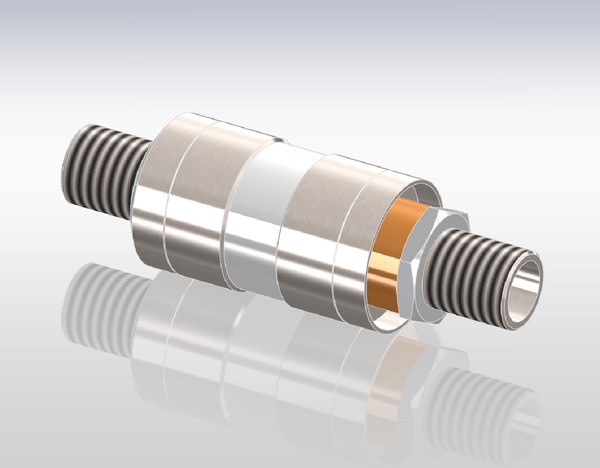

Coaxial, SMA, 50 OHM High Frequency, Isolated Ground, 45 GHz, ISO-KF Flange

Extra information

Coaxial- SMA/SMA
• 50 Ohm / Double Ended - Isolated Ground
• Double Ended Configuration with 2.92 mm SMA Jack Adapter Interfaces
• No. Pins: see schedule
• Installation: see schedule
• Voltage Rating: 500 V DC
• Current Rating: 1 Amp
• Frequency Range: DC to 45 GHz
• He Leak Rate: 1E-9 mbar l/s
• Temp. Range: -200°C to +250°C
• Materials:
Weld Ring: Stainless Steel Alloy 304L in accordance with SAE AMS-QQ-S-763.
Insulator: Aluminum Oxide (96% or greater).
Jack Adapter: Stainless Steel Alloy 300-Series
Jam Nut: Stainless Steel Alloy 300-Series.

Other options available on request
