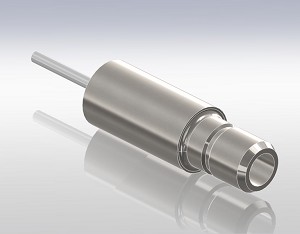

Coaxial, SMB, Low Frequency, Single Ended-Grounded Shield, Weld

Coaxial, SMB, Low Frequency, Single Ended-Grounded Shield, Weld

Group number: C002.0
Description:Coaxial, SMB, Low Frequency, Single Ended-Grounded Shield, Weld

Extra information

Specifications:
Materials:
Housing: Kovar
Pin: SST 416
Insulation: Alumina Ceramic
Magnetic Materials: Yes
Voltage Rating: 500 V DC
Current Rating: 1.4 Amps
Temp. Range: -55ºC to 450ºC, ISO KF -25ºC to 205ºC
Pressure @20C: See Table

CodeFlangePinsBarPSIGPrice ex.Qty
0713-02-WWeld12413500
€ 94,00
 ×1
= in stock. = out of stock.
