/ Electrical Feedthroughs / Coaxial / Type N

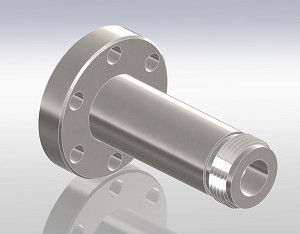

Coaxial, Type N, Low Frequency, Conflat Flange

Coaxial, Type N, Low Frequency, Conflat Flange

Group number: C005.72
Description:Coaxial, Type N, Low Frequency, Conflat Flange

Extra information

Specifications:
Materials:
. Housing: 304 Stainless steel
. Pin: 304 Stainless steel
. Insulation: Alumina ceramic
. Flange: 304 Stainless steel
. Magnetic Materials: No
Voltage Rating 1.5 kV DC
Current Rating 3.6 Amps
Temperature Range
. -269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
. PSIG 1800, Bar 124
Leak Rate <1x10-10 mbar L/s (He)

CodeFlangeType 1BarPSIGPrice ex.Qty
18080-02-CFNW35CFDouble Ended
€ 446,50
 ×1
7588-02-CFNW16CFSingle Ended1241800
€ 248,50
 ×1
7587-02-CFNW35CFSingle Ended1031500
€ 255,50
 ×1
= in stock. = out of stock.
