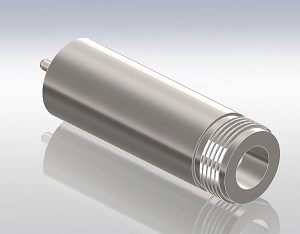

Coaxial, Type N, Low Frequency/Single Ended, Weld

Extra information

Specifications:
• Materials
.. Housing: 304 Stainless steel
.. Pin: 304 Stainless steel
.. Insulation: Alumina ceramic
.. Flange: 304 Stainless steel
.. Magnetic Materials: No
• Voltage Rating 1.5 kV DC
• Current Rating 3.6 Amps
• Temperature Range
.. -269º C to 450º C, ISO KF -25º C to 205º C
• Pressure @ 20ºC
.. PSIG 1800, Bar 124
• Leak Rate <1x10-10 mbar L/s (He)
