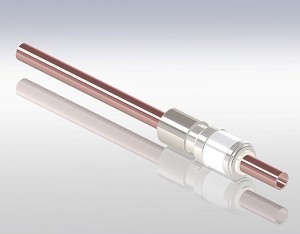

High Power/ Liquid Cooled 8 kV/ to 1000 Amps, Weld

Extra information

*Current carrying capacity of the tubular feedthroughs varies based on the coolant used and the flow rate.
Specifications: Liquid Cooled Tube or Solid Pin
Materials:
Housing: 304 Stainless steel
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: Yes
Tube / Pin: See table
Voltage Rating: 8 kV DC
Current Rating: See Table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º
Pressure @ 20ºC
Ø 6.4: 750 Psig (52 Bar)
Ø 9.5: 500 Psig (34 Bar)
Ø 12.7: 350 Psig (24 Bar)
Ø19.05: 250 Psig (17 Bar)
Leak Rate <1x10^-10 mbar L/s (He)
