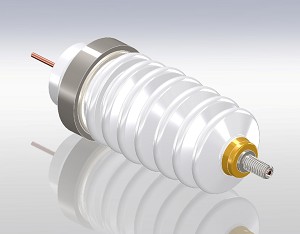

High Voltage/ 70 kV/ 6.5 Amps, Weld

Extra information

Specifications - 70 KV

Materials:
-- Housing: SST 304
-- Conductor: SST 304
-- Insulation: Alumina Ceramic
-- Magnetic Materials: Yes
Voltage Rating: 70 kV DC
Current Rating: 6.5 AMPS
Temperature Range: -269° to 450° C
Pressure @ 20°C 125 PSIG (8.6 Bar), ISO KF 0 PSIG
