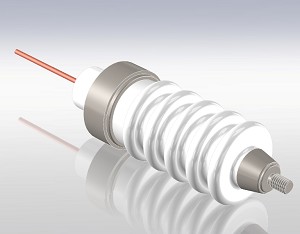

High Voltage/ Fluted: 30 kV/ 4 Amps, Weld

Extra information

Specifications:

Materials:
-- Housing: SST 304
-- Pin: SST 304
-- Insulation: Alumina Ceramic
-- Magnetic Materials: Yes
Voltage Rating: 30 kV DC
Current Rating: 4 AMPS
Temperature Range: -269° to 450°C, ISO KF -25 °C to 205 °C
Pressure @ 20°C 250 PSIG (17 Bar), ISO KF o PSIG
