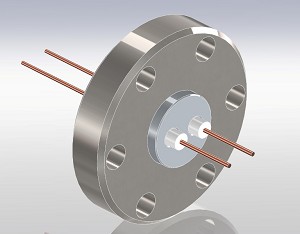

Feedthrough Instrumentation / Power, Conflat Flange

Group number:	A001.12
Description:	Feedthrough Instrumentation / Power, Conflat Flange

Extra information

Specifications
Materials
Housing: 304 Stainless steel
Pin: See table
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: See table
Voltage Rating See table
Current Rating See table
Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
2 & 4 pin: 1400 PSIG (96 Bar), 8 pin: 500 PSIG (34 Bar)
Leak Rate <1x10-10 mbar L/s (He)

M = Magnetic Material

Code	Flange	Material	Pins	Type 1	Volt.	AMPS	Price ex.	Qty
17046-01-CF	CF16	304	2	M: No	2 kV DC	1.1	€ 153,50	×1
17046-02-CF	CF16	Nickel	2	M: Yes	2 kV DC	5	€ 153,50	×1
17046-03-CF	CF16	Moleybdenum	2	M: No	2 kV DC	8.5	€ 153,50	×1
17046-04-CF	CF16	Copper	2	M: No	2 kV DC	16	€ 153,50	×1
17048-01-CF	CF16	304	4	M: No	2 kV DC	1.1	€ 176,50	×1
17048-02-CF	CF16	Nickel	4	M: Yes	2 kV DC	5	€ 176,50	×1
17048-03-CF	CF16	Molybdenum	4	M: No	2 kV DC	8.5	€ 191,50	×1
17048-04-CF	CF16	Copper	4	M: No	2 kV DC	16	€ 169,00	×1
9340-06-CF	CF16	304	8	M: No	1.5 kV DC	1.1	€ 214,50	×1
9340-01-CF	CF16	Nickel	8	M: Yes	1.5 kV DC	5	€ 214,50	×1
9340-04-CF	CF16	Molybdenum	8	M: No	1.5 kV DC	8.5	€ 245,50	×1
9340-05-CF	CF16	Copper	8	M: No	1.5 kV DC	16	€ 214,50	×1

= in stock. = out of stock.
