/ Electrical Feedthroughs / Feedthrough / Instrumentation / Power
Feedthrough Instrumentation / Power, Weld

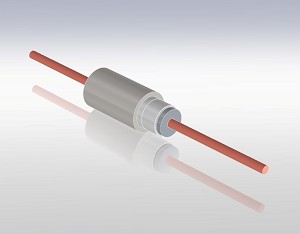

Feedthrough Instrumentation / Power, Weld

Group number: A001.10
Description:Feedthrough Instrumentation / Power, Weld

Extra information

Specifications
• Materials
Housing: 304 Stainless steel
Pin: See table
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: No
• Voltage Rating 1 kV DC
• Current Rating See table
• Temperature Range
-269º C to 450º C
• Pressure @ 20ºC
3500 PSIG (241 Bar)
• Leak Rate <1x10-10 mbar L/s (He)

CodeFlangeD1 (OD size)MaterialPinsType 1Type 3Volt.AMPSPrice ex.Qty
9809-01-WWeld or Braze Kovar Tube1Magn. Mat.: YesTube 0.81mm500 V
€ 65,00
 ×1
9809-02-WWeld or Braze Molybdenum1Magn. Mat.: YesPin 0.81mm500 V11.5
€ 31,50
 ×1
9297-03-WWeld3.91SST 3041Magn. Mat.: NoPin 0.81mm1 kV DC1.1
€ 43,00
 ×1
9297-01-WWeld3.91Nickel1Magn. Mat.: YesPin 0.81mm1 kV DC5
€ 40,00
 ×1
9297-06-WWeld3.91Molybdenum1Magn. Mat.: NoPin 0.81mm1 kV DC8.5
€ 43,50
 ×1
9297-08-WWeld3.91Copper1Mat. Magn.: NoPin 0.81mm1 kV DC16
€ 38,50
 ×1
9298-07-WWeld12.62SST 3042Magn. Mat.: NoPin 0.81mm2 kV DC1.1
€ 88,50
 ×1
9298-01-WWeld12.62Nickel2Magn. Mat.: YesPin 0.81mm2 kV DC5
€ 86,00
 ×1
9298-05-WWeld12.62Molybdenum2Magn. Mat.: NoPin 0.81mm2 kV DC8.5
€ 88,50
 ×1
9298-06-WWeld12.62Copper2Magn. Mat.: NoPin 0.81mm2 kV DC16
€ 92,00
 ×1
9299-05-WWeld12.62SST 3044Magn. Mat.: NoPin 0.81mm2 kV DC1.1
€ 102,50
 ×1
9299-01-WWeld12.62Nickel4Magn. Mat.: YesPin 0.81mm2 kV DC5
€ 110,50
 ×1
9299-04-WWeld12.62Molybdenum4Magn. Mat.: NoPin 0.81mm2 kV DC8.5
€ 121,50
 ×1
9299-06-WWeld12.62Copper4Magn. Mat.: NoPin 0.81mm2 kV DC16
€ 107,50
 ×1
9294-03-WWeld19SST 3048Magn. Mat.: NoPin 0.81mm1.5 kV DC1.1
€ 147,00
 ×1
9294-01-WWeld19Nickel8Magn. Mat.: YesPin 0.81mm1.5 kV DC5
€ 147,00
 ×1
9294-04-WWeld19Molybdenum8Magn. Mat.: NoPin 0.81mm1.5 kV DC8.5
€ 176,50
 ×1
9294-08-WWeld19Copper8Magn. Mat.: NoPin 0.81mm1.5 kV DC16
€ 147,00
 ×1
= in stock. = out of stock.
