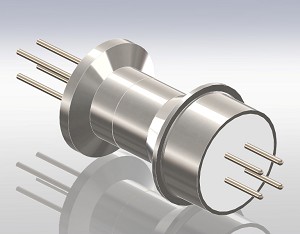

Feedthrough Pin Header, ISO-KF Flange

Extra information

Specifications - 4, 6 & 10 Pin
• Materials
Pin: Alumel
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: Yes
• Voltage Rating See table
• Current Rating 5 Amps per pin
• Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
• Pressure @ 20ºC
ISO KF: 0 PSIG
4 Pin: 600 PSIG ( 41 Bar)
6 Pin: 550 PSIG ( 38 Bar)
10 Pin: 500 PSIG (34 Bar)
• Leak Rate <1x10-10 atm-cc/sec (He)
