Feedthrough Power 5 kV-25 kV/ to 185 Amps, Conflat Flange

Group number:	A002.17
Description:	Feedthrough Power 5 kV-25 kV/ to 185 Amps, Conflat Flange

Extra information

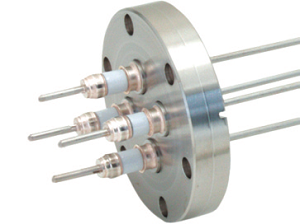

Picture is an example

Code	Flange	Material	Pins	Type 1	Type 2	Volt.	AMPS	Bar	Temp. Min.	Temp. Max.	Price ex.	Qty
19542-07-CF	NW16CF	SST 304	1	Magn. Mat.: No	L: .4"	10 kV DC	3.6				€ 120,00	×1
19543-07-CF	NW16CF	SST 304	1	Magn. Mat.: No	L: .4"	20 kV DC	3.6	103			€ 174,50	×1
19542-03-CF	NW16CF	Nickel	1	Magn. Mat.: Nickel	L: .4"	10 kV DC	16.5				€ 123,50	×1
21131-02-CF	NW16CF	Nickel	1		L: .5"	10 kV DC	30				€ 186,50	×1
19542-04-CF	NW16CF	Copper	1	Magn. Mat.: No	L: .4"	10 kV DC	55				€ 119,00	×1
19543-04-CF	NW16CF	Copper	1	Magn. Mat.: No	L: .4"	20 kV DC	55	103			€ 174,50	×1
21131-01-CF	NW16CF	Copper	1		L: .5"	10 kV DC	100				€ 154,00	×1
19543-03-CF	NW16CF	Nickel	1	Magn. Mat.: Yes	L: .4"	20 kV DC	16.5	103			€ 174,50	×1
21130-02-CF	NW16CF	Nickel	1			25 kV DC	56	52	-269	450	€ 200,50	×1
21309-02-CF	NW16CF	Nickel	1		L: .75"	15 kV DC	56				€ 245,50	×1
21130-01-CF	NW16CF	Copper	1			25 kV DC	185	52	-269	450	€ 182,50	×1
21309-01-cf	NW16CF	Copper	1		L: .75"	15 kV DC	185				€ 202,50	×1
9545-01-CF	NW16CF	Nickel	2	Magn. Mat.: Yes	L: 1.0"	5 kV DC	16.5				€ 183,50	×1
9545-02-CF	NW16CF	Copper	2	Magn. Mat.: Copper	L: 1.0"	5 kV DC	55				€ 175,00	×1
6404-03-CF	NW16CF	Nickel	3	Magn. Mat.: Yes	L: 1.0"	5 kV DC	16.5				On request	×1
6404-02-CF	NW16CF	Copper	3	Magn. Mat.: No	L: 1.0"	5 kV DC	55				On request	×1
21144-02-CF	NW35CF	Nickel	1		A: 2.68 B: .65	25 kV DC	56	52	-269	450	€ 322,00	×1
21280-02-CF	NW35CF	Nickel	1		L: .75"	15 kV DC	56				€ 244,50	×1
21144-01-CF	NW35CF	Copper	1	Magn. Mat.: No	A: 2.68 B: 0.65	25 kV DC	185	52			€ 278,50	×1
21280-01-CF	NW35CF	Copper	1		L: .75"	15 kV DC	185				€ 201,50	×1
17060-05-CF	NW35CF	SST 304	2	Magn. Mat.: No	L: .4"	10 kV DC	3.6				€ 214,00	×1
17060-06-CF	NW35CF	Nickel	2	Magn. Mat.: Yes	L: .4"	10 kV DC	16.5				€ 218,00	×1
21154-02-CF	NW35CF	Nickel	2		L: .5"	10 kV DC	30				€ 340,50	×1
17060-08-CF	NW35CF	Copper	2	Magn. Mat.: No	L: .4"	10 kV DC	55				€ 214,00	×1
21154-01-CF	NW35CF	Copper	2		L: .5"	10 kV DC	100				€ 275,50	×1
16705-06-CF	NW35CF	Nickel	2		L: 1.0"	15 kV DC	56				€ 406,00	×1
16705-01-CF	NW35CF	Copper	2		L: 1.0"	15 kV DC	185				€ 346,00	×1
10287-04-CF	NW35CF	SST 304	2	Magn. Mat.: No	L: .4"	20 kV DC	3.6				€ 269,50	×1
10287-05-CF	NW35CF	Nickel	2	Magn. Mat.: Yes	L: .4"	20 kV DC	16.5				€ 269,50	×1
10287-03-CF	NW35CF	Copper	2	Magn. Mat.: No	L: .4"	20 kV DC	55				€ 269,50	×1
21145-02-CF	NW35CF	Nickel	2		A: 2.68 B: .65	25 kV DC	56	52	-269	450	€ 456,00	×1
21280-04-CF	NW35CF	Nickel	2		L: .75"	15 kV DC	56				€ 433,50	×1
21145-01-CF	NW35CF	Copper	2		A: 2.68 B: .65	25 kV DC	185	52	-269	450	€ 369,50	×1
21280-03-CF	NW35CF	Copper	2		L: .75"	15 kV DC	185				€ 347,00	×1
17064-05-CF	NW35CF	SST 304	3	Magn. Mat.: No	L: .4"	10 kV DC	3.6				€ 282,00	×1
17064-06-CF	NW35CF	Nickel	3	Magn. Mat.: Yes	L: .4"	10 kV DC	16.5				€ 292,50	×1
21155-02-CF	NW35CF	Nickel	3		L: .5"	10 kV DC	30				€ 483,00	×1
17064-08-CF	NW35CF	Copper	3	Magn. Mat.: No	L: .4"	10 kV DC	55				€ 273,50	×1
21155-01-CF	NW35CF	Copper	3		L: .5"	10 kV DC	100				€ 385,50	×1
17065-05-CF	NW35CF	SST 304	3	Magn. Mat.: No	L: .4"	20 kV DC	3.6				€ 334,00	×1
17065-06-CF	NW35CF	Nickel	3	Magn. Mat.: Yes	L: .4"	20 kV DC	16.5				€ 348,00	×1
17065-08-CF	NW35CF	Copper	3	Magn. Mat.: No	L: .4"	20 kV DC	55				€ 322,00	×1
17069-05-CF	NW35CF	SST 304	4	Magn. Mat.: No	L: .4"	10 kV DC	3.6				€ 358,00	×1
17069-06-CF	NW35CF	Nickel	4	Magn. Mat.: Nickel	L: .4"	10 kV DC	16.5				€ 371,50	×1
21156-02-CF	NW35CF	Nickel	4		L: .5"	10 kV DC	30				€ 625,50	×1
17069-08-CF	NW35CF	Copper	4	Magn. Mat.: No	L: .4"	10 kV DC	55				€ 346,00	×1
21156-01-CF	NW35CF	Copper	4		L: .5"	10 kV DC	100				€ 495,50	×1
16709-16-CF	NW35CF	SST 304	4	Magn. Mat.: No	L: .4"	20 kV DC	3.6				€ 357,00	×1
16709-08-CF	NW35CF	Nickel	4	Magn. Mat.: Yes	L: .4"	20 kV DC	16.5				€ 357,00	×1
16709-10-CF	NW35CF	Copper	4	Magn. Mat.: No	L: .4"	20 kV DC	55				€ 342,00	×1
21146-02-CF	NW63CF	Nickel	3		A: 2.87 B: .47	25 kV DC	56	52	-269	450	€ 587,50	×1
21280-06-CF	NW63CF	Nickel	3		L: .75"	15 kV DC	56				€ 654,50	×1
21146-01-CF	NW63CF	Copper	3		A: 2.87 B: .47	25 kV DC	185	52	-269	450	€ 475,50	×1
21280-05-CF	NW63CF	Copper	3		L: .75	15 kV DC	185				€ 524,50	×1
21147-02-CF	NW63CF	Nickel	4		A: 2.87 B: .47	25 kV DC	56	52	-269	450	€ 685,00	×1
21280-08-CF	NW63CF	Nickel	4		L: .75"	15 kV DC	56				€ 843,50	×1
21147-01-CF	NW63CF	Copper	4		A: 2.87 B: .47	25 kV DC	185	52	-269	450	€ 602,50	×1
21280-07-CF	NW63CF	Copper	4		L: .75"	15 kV DC	185				€ 670,00	×1

= in stock. = out of stock.
