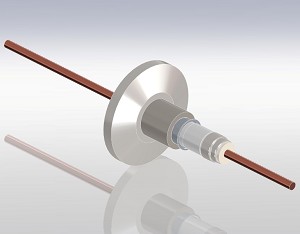

Feedthrough Power 5 kV-25 kV/ to 185 Amps, ISO-KF Flange

Group number:	A002.15
Description:	Feedthrough Power 5 kV-25 kV/ to 185 Amps, ISO-KF Flange

Extra information

Specifications

Materials:
-- Housing: SST 304
-- Pin See Art
-- Insulation: Alumina ceramic
-- Magnetic Materials: Yes
Voltage Rating: See Table*
Current Rating: See Table
Temperature Range: -269°C to 450°C, ISO-KF -25°C to 205°C
Pressure @ 20°C 750 PSIG (52 Bar), ISO-KF 0 PSIG

*When used with air side cable assembly
Prices depending on US$ exchange rate.

Code	Flange	Material	Pins	Type 1	Type 2	Volt.	AMPS	Price ex.	Qty
17026-05-KF	NW16KF	SST 304	1	Magn. Mat.: No	L: .4"	10 kV DC	3.6	€ 138,00	×1
17026-06-KF	NW16KF	Nickel	1	Magn. Mat.: Yes	L: .4"	10 kV DC	16.5	€ 141,50	×1
21134-02-KF	NW16KF	Nickel	1		L: .5"	10 kV DC	30	€ 186,50	×1
17026-08-KF	NW16KF	Copper	1	Magn. Mat.: No	L: .4"	10 kV DC	55	€ 135,00	×1
21134-01-KF	NW16KF	Copper	1		L: .5"	10 kV DC	100	€ 154,00	×1
17036-05-KF	NW16KF	SST 304	1	Magn. Mat.: No	L: .4"		3.6	€ 174,50	×1
17036-06-KF	NW16KF	Nickel	1	Magn. Mat.: Yes	L: .4"		16.5	€ 174,50	×1
17036-08-KF	NW16KF	Copper	1	Magn. Mat.: No	L: .4"		55	€ 174,50	×1
21133-02-KF	NW16KF	Nickel	1			25 kV DC	56	€ 390,00	×1
21308-02-KF	NW16KF	Nickel	1		L: .75"	15 kV DC	56	€ 251,50	×1
21133-01-KF	NW16KF	Copper	1			25 kV DC	185	€ 347,00	×1
21308-01-KF	NW16KF	Copper	1		L: .75"	15 kV DC	185	€ 208,50	×1
21278-02-KF	NW40KF	Nickel	1		L: .75"	15 kV DC	56	€ 243,50	×1
21278-01-KF	NW40KF	Copper	1		L: .75"	15 kV DC	185	€ 200,50	×1
17027-05-KF	NW40KF	SST 304	2	Magn. Mat.: No	L: .4"	10 kV DC	3.6	€ 214,00	×1
17027-06-KF	NW40KF	Nickel	2	Magn. Mat.: Yes	L: .4"	10 kV DC	16.5	€ 214,00	×1
21158-02-KF	NW40KF	Nickel	2		L: .5"	10 kV DC	30	€ 339,50	×1
17027-08-KF	NW40KF	Copper	2	Magn. Mat.: No	L: .4"	10 kV DC	55	€ 214,00	×1
21158-01-KF	NW40KF	Copper	2		L: .5"	10 kV DC	100	€ 274,50	×1
17037-05-KF	NW40KF	SST 304	2	Magn. Mat.: No	L: .4"		3.6	€ 269,50	×1
17037-06-KF	NW40KF	Nickel	2	Magn. Mat.: Yes	L: .4"		16.5	€ 269,50	×1
17037-08-KF	NW40KF	Copper	2	Magn. Mat.: No	L: .4"		55	€ 269,50	×1
21149-02-KF	NW40KF	Nickel	2			25 kV DC	56	€ 367,50	×1
21278-04-KF	NW40KF	Nickel	2		L: .75"	15 kV DC	56	€ 432,50	×1
21149-01-KF	NW40KF	Copper	2			25 kV DC	185	€ 325,00	×1
21278-03-KF	NW40KF	Copper	2		L: .75"	15 kV DC	185	€ 346,00	×1
17067-05-KF	NW40KF	SST 304	3	Magn. Mat.: No	L: .4"	10 kV DC	3.6	€ 282,00	×1
17068-05-KF	NW40KF	SST 304	3	Magn. Mat.: No	L: .4"		3.6	€ 317,00	×1
17067-06-KF	NW40KF	Nickel	3	Magn. Mat.: Yes	L: .4"	10 kV DC	16.5	€ 292,50	×1
17068-06-KF	NW40KF	Nickel	3	Magn. Mat.: Yes	L: .4"		16.5	€ 317,00	×1
21159-02-KF	NW40KF	Nickel	3		L: .5"	10 kV DC	30	€ 482,00	×1
17067-08-KF	NW40KF	Copper	3	Magn. Mat.: No	L: .4"	10 kV DC	55	€ 273,50	×1
17068-08-KF	NW40KF	Copper	3	Magn. Mat.: No	L: .4"		55	€ 304,00	×1
21159-01-KF	NW40KF	Copper	3		L: .5"	10 kV DC	100	€ 384,50	×1
17028-05-KF	NW40KF	SST 304	4	Magn. Mat.: No	L: .4"	10 kV DC	3.6	€ 357,00	×1
17028-06-KF	NW40KF	Nickel	4	Magn. Mat.: No	L: .4"	10 kV DC	16.5	€ 370,50	×1
21160-02-KF	NW40KF	Nickel	4		L: .5"	10 kV DC	30	€ 624,50	×1
17028-08-KF	NW40KF	Copper	4	Magn. Mat.: No	L: .4"	10 kV DC	55	€ 345,00	×1
21160-01-KF	NW40KF	Copper	4		L: .5"	10 kV DC	100	€ 494,50	×1
17038-05-KF	NW40KF	SST 304	4	Magn. Mat.: No	L: .4"		3.6	€ 357,00	×1
17038-06-KF	NW40KF	Nickel	4	Magn. Mat.: Yes	L: .4"		16.5	€ 357,00	×1
17038-08-KF	NW40KF	Copper	4	Magn. Mat.: No	L: .4"		28	€ 357,00	×1
21150-02-KF	NW50KF	Nickel	3			25 kV DC	56	€ 523,00	×1
21278-06-KF	NW50KF	Nickel	3		L: .75"	15 kV DC	56	€ 619,50	×1
21150-01-KF	NW50KF	Copper	3			25 kV DC	185	€ 475,50	×1
21278-05-KF	NW50KF	Copper	3		L: .75"	15 kV DC	185	€ 489,50	×1
21151-02-KF	NW50KF	Nickel	4			25 kV DC	56	€ 624,00	×1
21278-08-KF	NW50KF	Nickel	4		L: .75"	15 kV DC	56	€ 808,50	×1
21151-01-KF	NW50KF	Copper	4			25 kV DC	185	€ 602,50	×1
21278-07-KF	NW50KF	Copper	4		L: .75"	15 kV DC	185	€ 635,00	×1

= in stock. = out of stock.
