Feedthrough Power 5 kV-25 kV/ to 185 Amps, Weld

Feedthrough Power 5 kV-25 kV/ to 185 Amps, Weld

Group number: A002.00W
Description:Feedthrough Power 5 kV-25 kV/ to 185 Amps, Weld

Extra information

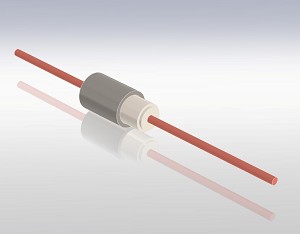

Picture is an Example
For the right specifications see Product

M = Magnetic Materials
* Current carrying capacity of the tubular feedthroughs varies based on the coolant used and the flow rate

CodeFlangeLMaterialPinsType 1Type 2Type 3Volt.AMPSBarPSIGTemp. Min.Temp. Max.Price ex.Qty
2779-01-WWeld Copper1L: 1.0"Pin 6.35mm12 kV DC18552750-269450
€ 140,50
 ×1
2779-07-WWeld Nickel1L: 1.0"Pin 6.35mm12 kV DC5652750-269450
€ 169,50
 ×1
3887-12-WWeld25.4Copper1M=NoL: 1.0"Pin 2.4mm5 kV DC551031500-269450
€ 58,00
 ×1
3887-51-WWeld Nickel1M=YesL: 1.0"Pin 2.4mm5 kV DC251031500-269450
€ 64,50
 ×1
3887-68-WWeld 3041M=NoL: 1.0"Pin 2.4mm5 kV DC3.6103 -269450
€ 61,00
 ×1
3888-08-WWeld 3041M=NoL: .4"Pin 2.4mm10 kV DC3.61031500-269450
€ 73,00
 ×1
3888-09-WWeld Nickel1M=YesL: .4"Pin 2.4mm10 kV DC16.51031500-269450
€ 76,50
 ×1
3888-10-WWeld10.16Copper1M=NoL: .4"Pin 2.4mm10 kV DC551031500-269450
€ 70,50
 ×1
4275-14-WWeld Copper1M=NoL: 1.0"Pin 2.4mm14 kV DC551031500-269450
€ 54,00
 ×1
4275-15-WWeld Nickel1M=YesL: 1.0"Pin 2.4mm14 kV DC16.51031500-269450
€ 58,50
 ×1
4275-17-WWeld 3041M=NoL: 1.0"Pin 2.4mm14 kV DC3.61031500-269450
€ 55,00
 ×1
4275-21-WWeld Copper1M=NoL: .4"Pin 2.4mm14 kV DC551031500-269450
€ 64,50
 ×1
4275-22-WWeld Nickel1M=YesL: .4"Pin 2.4mm14 kV DC16.51031500-269450
€ 71,00
 ×1
6514-01-WWeld Copper1L: 1.0"Pin 3.9mm5 kV DC100691000-269450
€ 100,50
 ×1
6514-02-WWeld Nickel1M=YesL: 1.0"Pin 3.9mm5 kV DC30691000-269450
€ 143,00
 ×1
7844-01-WWeld Nickel1M: YesPin 1.3mm2 kV DC8.22413500-269450
€ 43,50
 ×1
7844-02-WWeld 3041M: NoPin 1.3mm2 kV DC1.82413500-269450
€ 41,50
 ×1
7844-04-WWeld Copper1M: NoPin 1.3mm2 kV DC272413500-269450
€ 41,00
 ×1
7844-21-WWeld Molybdenum1M: NoPin 1.3mm2 kV DC13.52413500-269450
€ 51,00
 ×1
8177-01-WWeld Nickel4M: YesPin 1.3mm3 kV DC8.2861250-269450
€ 115,00
 ×1
8177-02-WWeld 3044M: NoPin 1.3mm3 kV DC1.8861250-269450
€ 110,50
 ×1
8177-04-WWeld Copper4M: NoPin 1.3mm3 kV DC27861250-269450
€ 110,50
 ×1
8177-06-WWeld Molybdenum4M: NoPin 1.3mm3 kV DC13.5861250-269450
€ 183,50
 ×1
9215-02-WWeld Nickel2M: YesPin 1.3mm6 kV DC8.2861250-269450
€ 100,00
 ×1
9215-04-WWeld 3042M: NoPin 1.3mm6 kV DC1.8861250-269450
€ 93,00
 ×1
9215-08-WWeld Copper2M: NoPin 1.3mm6 kV DC27861250-269450
€ 93,00
 ×1
9215-14-WWeld Molybdenum2M: NoPin 1.3mm6 kV DC13.5861250-269450
€ 100,00
 ×1
9216-02-WWeld Nickel4M: YesPin 1.3mm6 kV DC8.2861250-269450
€ 114,50
 ×1
9216-04-WWeld SST 3044M: NoPin 1.3mm6 kV DC1.8861250-269450
€ 114,50
 ×1
9216-08-WWeld Copper4M: NoPin 1.3mm6 kV DC27861250-269450
€ 111,50
 ×1
9216-14-WWeld Molybdenum4M: NoPin 1.3mm6 kV DC13.5861250-269450
€ 172,00
 ×1
9791-02-WWeld Nickel1M: YesPin 1.3mm5 kV DC8.2241 -269450
€ 43,00
 ×1
9791-04-WWeld 3041M: NoPin 1.3mm5 kV DC1.8241 -269450
€ 44,00
 ×1
9791-06-WWeld Nickel Tube1M: YesWall: .005"Tube 1.3mm5 kV DC241 -269450
€ 93,50
 ×1
9791-08-WWeld Copper1M.: NoPin 1.3mm5 kV DC27241 -269450
€ 43,00
 ×1
9791-09-WWeld Molybdenum1M: NoPin 1.3mm5 kV DC13.5241 -269450
€ 48,50
 ×1
17575-03-WWeld 3041M=NoL: .4"Pin 2.4mm14 kV DC3.61031500-269450
€ 67,50
 ×1
20955-01-WWeldCopper1Pin 6.35mm25 kV DC18552750-269450
€ 130,00
 ×1
20955-02-WWeldNickel1Pin 6.35mm25 kV DC5652750-269450
€ 172,00
 ×1
21032-01-WWeld Copper1L: .5"Pin 3.9mm10 kV DC100691000-269450
€ 106,50
 ×1
21032-02-WWeldNickel1L: .5"Pin 3.9mm10 kV DC30691000-269450
€ 138,00
 ×1
21414-01-WWeld Copper1L: .75"Pin 6.35mm15 kV DC18552750-269450
€ 141,00
 ×1
21414-07-WWeld Nickel1L: .75"Pin 6.35mm15 kV DC5652750-269450
€ 183,00
 ×1
= in stock. = out of stock.
