/ Electrical Feedthroughs / Isolator / Vacuum

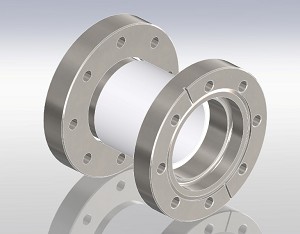

Isolator - Vacuum - ID 64.0, Conflat Flange

Isolator - Vacuum - ID 64.0, Conflat Flange

Group number: E003.24
Description:Isolator - Vacuum - ID 64.0, Conflat Flange

Extra information

Specifications- Vacuum
Materials
Insulation: Alumina ceramic
Magnetic Materials: Yes
Tube: Kovar
Voltage Rating 60 kV
Temperature Range
-55º C to 450º C
Pressure @ 20ºC
150 PSIG (10 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)

CodeFlangeD2 (ID size)Volt.BarPSIGTemp. Min.Temp. Max.Price ex.Qty
4511-05-CFNW100CF6460 kV DC10150-55450
€ 1.762,00
 ×1
= in stock. = out of stock.
