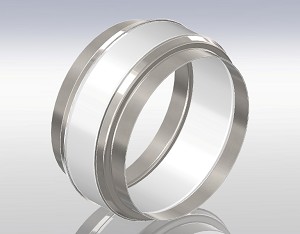

Isolator - Vacuum - ID 64.0, Weld, -269°C

Group number:	E003.25
Description:	Isolator - Vacuum - ID 64.0, Weld, -269°C

Extra information

Specifications- Vacuum
Materials
Insulation: Alumina ceramic
Magnetic Materials: Yes
Tube: 52 Nickel iron
Voltage Rating See table
Temperature Range
-269º C to 450º C
Pressure @ 20ºC
80 PSIG (5 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)

Code	Flange	D2 (ID size)	Type 1	Type 2	Volt.	Bar	PSIG	Temp. Min.	Temp. Max.	Price ex.	Qty
17140-01-W	Weld	64	A: 95mm	B:22.8mm	20 kV DC	5	80	-269	450	€ 1.524,00	×1
17140-02-W	Weld	64	A:165mm	B:92,7mm	60 kV DC	5	80	-269	450	€ 1.819,50	×1

= in stock. = out of stock.
