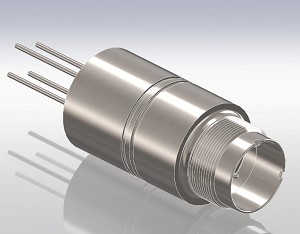

Multipin Connector, High Voltage

Extra information

Specifications: 2 and 4 Pin
Materials
Pin: Molybdenum (Nickel plated)
Insulation: Alumina ceramic
Magnetic Materials: Yes
Shell: 304 Stainless steel
Voltage Rating 12 kV DC (pin/ pin and pin/ shell)
Current Rating 13 Amps per pin
Temperature Range
-269 º C to 450 º C, ISO KF -25 º C to205 º C
Pressure @ 20ºC
ISO KF: 0 PSIG
4 Pin: 300 PSIG (20 Bar)
2 Pin: 400 PSIG (28 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)
