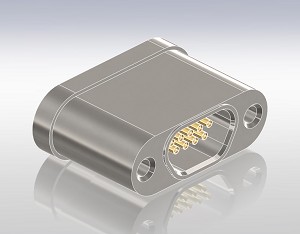

Multipin Connector Micro-D Type, Weldable

Group number:	B002.007
Description:	Multipin Connector Micro-D Type, Weldable

Extra information

Specifications Ceramtec:
Materials:
Shell: 304 Stainless steel
Pins: Be-Cu Alloy (Gold plated)
Insulation: Glass-ceramic
Magnetic Materials: No
Voltage Rating 375 V DC
Current Rating 1 Amp per pin
Temperature Range -269°C to 450°C, ISO KF -25°C to 205°C
Pressure @ 20°C ISO KF 0 PSIG
9 Pin - 1450 PSIG (100 Bar)
15 Pin - 1375 PSIG (94.8 Bar)
25 Pin - 1300 PSIG (89.6 Bar)
51 Pin - 1125 PSIG (77.6 Bar)

Code	Flange	T	L	L1	Pins	Volt.	AMPS	Price ex.	Qty
8978-01-W	Weldable	13	19.05	7.11	9	300 V	3	On request	×1
8978-02-W	Weldable	13	22.85	7.11	15	300 V	3	On request	×1
8978-03-W	Weldable	13	26.67	7.11	21	300 V	3	On request	×1
8978-04-W	Weldable	13	29.2	7.11	25	300 V	3	On request	×1
8978-05-W	Weldable	13	33.02	7.11	31	300 V	3	On request	×1
8978-06-W	Weldable	13	36.83	7.11	37	300 V	3	On request	×1
8978-07-W	Weldable	13	35.56	8.2	51	300 V	3	On request	×1
8978-08-W	Weldable	13	51.08	9.32	100	300 V	3	On request	×1

= in stock. = out of stock.

	Multipin Connector Micro-D In-Vacuum Plug	On request

	Multipin Connector Micro-D, Air Side Cable	On request

	Multipin Connector Micro-D Type, Ribbon Cable 28 AWG	On request

	Multipin Connector Micro-D Type, Contacts	On request
