/ Electrical Feedthroughs / Multipin Connector / Single Power - MIL-C-5015

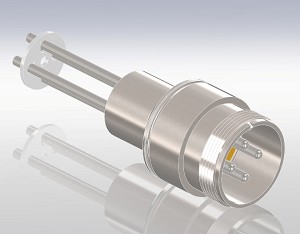

Multipin Connector, Circular Single Ended, Weld

Multipin Connector, Circular Single Ended, Weld

Group number: B005.5
Description:Multipin Connector, Circular Single Ended, Weld

Extra information

Multipin Connector Circular: Single Ended
No. Pins: 2 or 4
Current: 700V DC
Material: SST304/Alumina, Pin: Nickel or Molybdenum
Installation: Weld
Temperature Range: -269ºC to 450ºC. KF -25°C to 205°C
Pressure @ 20ºC:
2-Pin: 600 PSIG (41 Bar)
4-Pin: 500 PSIG (34 Bar)

CodeFlangeMaterialPinsType 1AMPSPrice ex.Qty
18097-02-WWeldNickel2Magn. Mat.: Yes25
€ 360,00
 ×1
18097-04-WWeldMolybdenum2Magn. Mat.: No46
€ 390,50
 ×1
18097-06-WWeldNickel4Magn. Mat.: Yes25
€ 418,50
 ×1
18097-08-WWeldMolybdenum4Magn. Mat.: No46
€ 477,00
 ×1
= in stock. = out of stock.
