/ Electrical Feedthroughs / Multipin Connector / Sub C type

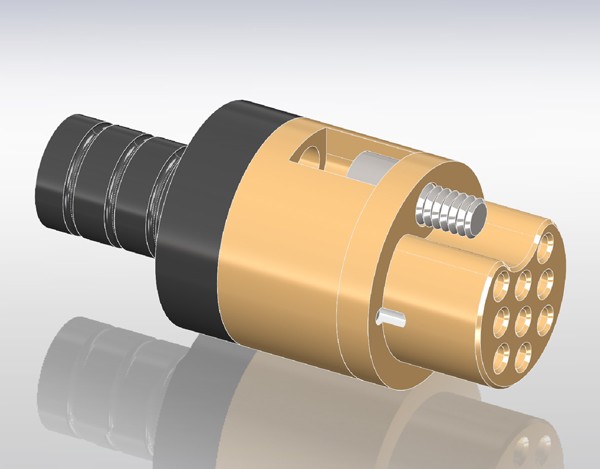

Multipin Connector Sub C Type, Air Side Plug

Multipin Connector Sub C Type, Air Side Plug

Group number: B002.014C
Description:Multipin Connector Sub C Type, Air Side Plug

Extra information

1- 1 EXTRA CONTACT FOR TOTAL OF 10 WILL BE SHIPPED WITH PLUG.
IF ADDITIONAL CONTACTS ARE NEEDED, THEY MAY BE PURCHASED FROM
CTNA AS P/N 16757-02-A, IN PACKAGES OF 5.
2- CURRENT RATING: 15 AMPS/CONTACT.
3- VOLTAGE RATING: 500 VDC.
4- MAX OPERATING TEMPERATURE: 82°C.

CodeFlangeMaterialPinsType 1Type 2Temp. Max.Price ex.Qty
24824-01-AAir SideDELRIN, COPPER ALLOY CONTACTS9Current Rating: 15 AMPS/ContactVoltage Rating: 500 VDC82
€ 158,50
 ×1
24825-01-AAir SideDELRIN, CONTACTS CuALLOY/SS23Current Rating: 2 AMPS/ContactVoltage Rating: 375 VDC82
€ 250,50
 ×1
= in stock. = out of stock.
