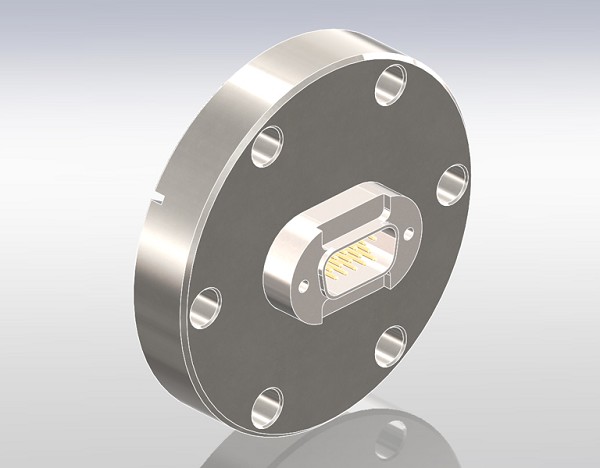

Multipin Connector High Density Sub-D Type, Conflat Flange

Extra information

Specifications:
Voltage Rating: 375V DC
Current Rating: 2 Amps/pin
Temperature: -269°C to 450°C
Pin Diameter: .030" [ 0.76mm]
Pin Counts: 15,26,44,62,78
Pressure @20°C:
15 Pin - 1350 PSIG (93.1 Bar)
26 Pin - 1250 PSIG (86.2 Bar)
44 Pin - 1200 PSIG (82.7 Bar)
78 Pin - 900 PSIG (62.1 Bar)
