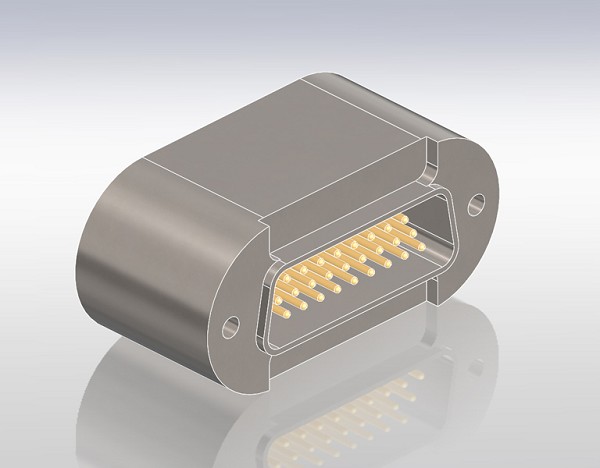

Multipin Connector High Density Sub-D Type, Weld

Group number:	B002.011
Description:	Multipin Connector High Density Sub-D Type, Weld

Extra information

Specifications:
Voltage Rating: 375V DC
Current Rating: 2 Amps/pin
Temperature: -269°C to 450°C
Pin Diameter: .030" [ 0.76mm]
Pin Counts: 15,26,44,62,78
Pressure @20°C:
15 Pin - 1350 PSIG (93.1 Bar)
26 Pin - 1250 PSIG (86.2 Bar)
44 Pin - 1200 PSIG (82.7 Bar)
78 Pin - 900 PSIG (62.1 Bar)

Code	Flange	Pins	Volt.	Price ex.	Qty
23800-01-W	Weld	15		€ 264,50	×1
23801-01-W	Weld	26		€ 281,00	×1
23802-01-W	Weld	44		€ 366,50	×1
23803-01-W	Weld	62		€ 443,50	×1
23804-01-W	Weld	78	375 kV DC	€ 542,50	×1

= in stock. = out of stock.
