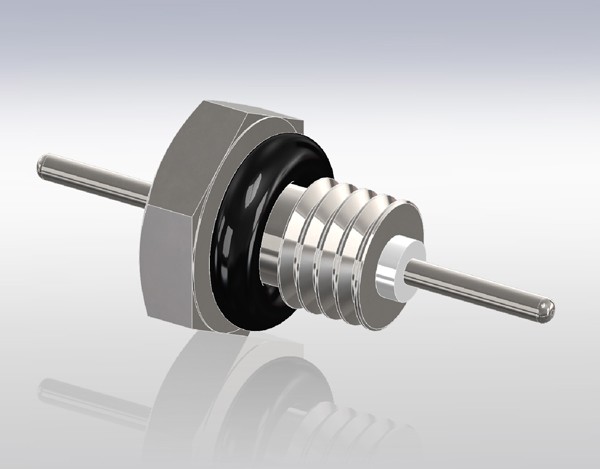

Pressure CeramTite

Extra information

Specifications: CeramTite
Materials:
• Pin: Alumel (Nickel Plated)
• Insulation: Glass- ceramic & Alumina ceramic
• Magnetic Materials: Yes
• O- ring: Viton®
• Body: 316 Stainless steel
Voltage Rating 500 V DC
Current Rating 4 Amps per pin
Temperature Range
• -269º C to 450º C,
• Viton® O-ring:-25º to 205º C
Pressure @ 20ºC
• Single pin: 25,000 (1724 Bar)
• 3 Pin: 20,000 (1379 Bar)
• 2 Pin: 20,000 (1379 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)
