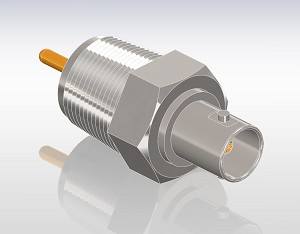

Pressure NPT, Coax Connector

Extra information

NPT Fitting: 316 Stainless steel
Conductor:
BNC: 304 Stainless steel
MHV: 304 Stainless steel
SHV: Nickel
Insulation: Alumina ceramic
Magnetic Materials:
BNC: No
MHV: No
SHV: Yes
Voltage Rating BNC: 500 V, MHV: 5 kV, SHV: 5 kV DC
Current Rating
BNC: 3.6 Amps, MHV: 3.6 Amps, SHV: 16.5 Amps
Temperature Range -269°C to 450°C
Pressure @ 20°C
BNC: 1400 (97 Bar)
MHV: 1400 (97 Bar)
SHV: 1600 (110 Bar)
