Thermocouple Spade & Power,Weld

Group number:	D004.0W
Description:	Thermocouple Spade & Power,Weld

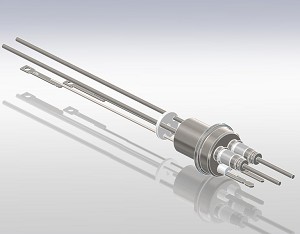

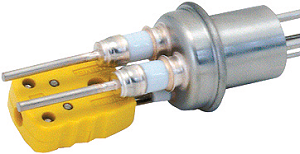

Picture is an Example

3182-01-W ASSEMBLY TO BE LEAK TIGHT TO 1x10E-9 ATM cc/sec HELIUM

Code	Flange	Material	Type 1	Volt.	AMPS	Bar	PSIG	Temp. Min.	Temp. Max.	Price ex.	Qty
3181-02-W	Weld	TC: Chromel/Alumel - Conductor: Nickel	Type: K	5 kV DC	16.5	34	500	-269	450	€ 307,50	×1
3182-01-W	Weld	TC: Chromel/Alumel - Conductor: Copper	Type: K	3 kV DC	27	55	800	-269	450	On request	×1
3181-01-W	Weld	TC: Chromel/Alumel - Conductor: Copper	Type: K	5 kV DC	55	34	500	-269	450	€ 272,50	×1
0572-02-W	Weld	TC: Tungsten-Rhenium - Conductor: Nickel	Type: C	5 kV DC	16.5	35	500	-269	250	€ 389,50	×1
0572-01-W	Weld	TC: Tungsten-Rhenium - Conductor: Copper	Type: C	3 kV DC	55	34	500	-269	250	€ 334,50	×1

= in stock. = out of stock.
