Hydraulically Formed Flexible Coupling - Short Bellow

Group number:	ISO053
Description:	Hydraulically Formed Flexible Coupling - Short Bellow

Std. = Standard
Also available with other edge welded bellows, see edge welded bellows section
Other Lengths available on Request

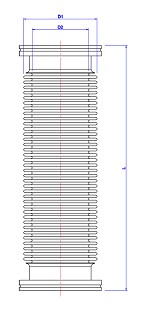

Code	Flange	D1 (OD size)	D2 (ID size)	L	Stroke	Material	Type 1	Price ex.	Qty
ISOX63/127	ISO-K63	86	65	127	13	304	Std.	€ 110,00	×1
ISOX80/80	ISO-K80	101	76	80		304		On request	×1
ISOX80/127	ISO-K80	101	76	127	15	304	Std.	€ 180,00	×1
ISOX80/200	ISO-K80	101	76	200		304	Std.	€ 189,00	×1
ISOX100/100	ISO-K100	123	95	100		304		€ 185,00	×1
ISOX100/120	ISO-K100	123	95	120		304		€ 190,00	×1
Isox100/127	ISO-K100	123	95	127	17	304	Std.	€ 195,00	×1
ISOX100/180	ISO-K100	123	95	180		304		€ 195,00	×1
ISOX100/200	ISO-K100	123	95	200	17	304	Std.	€ 195,00	×1
ISOX160/180	ISO-K160	177	185	180		304		€ 225,00	×1
ISOX160/220	ISO-K160	177	148	220	35	304	Std.	€ 393,00	×1
ISOX200/200	ISO-K200	238	199	200		304		On request	×1
ISOX200/230	ISO-K200	238	199	230		304	Std.	On request	×1
ISOX250/220	ISO-K250	292	249	220	30	304	Std.	On request	×1
ISOX63/127 316L	ISO-K63	86	65	127	13	316L	Std.	€ 148,00	×1
ISOX100/127 316L	ISO-K100	123	95	127	17	316L	Std.	€ 275,00	×1

= in stock. = out of stock.
