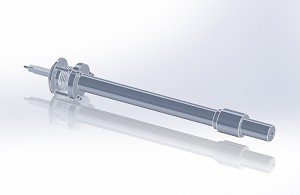

Mechanicial Feedthrough, UHV Magnetic Rotary Transfer Stage

Extra information

Stroke min 300mm up to 1000mm ( Other length on request.)
CF35 or CF63 mounting flange
+/-3° of tilt ( adjustable bellows)
15mm square tube (Linear translation)
- Mounting flange to end of square tube is by default 35mm
Ø6mm rod ( continuous rotary motion)
- Mounting flange to the end of Ø6mm rod is by default 50mm
Modifications to the rod and square tube lengths or added features available on request
M6 thread for external end-support mounting (support not included)
61N axial force, Torque 1.6Nm static
Bakeable to 200°C (short time 250°C)
*Special lengths or modifications available on request.
