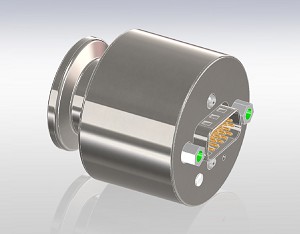

HVPM-5 transducer, DN16KF, RS-485, Std.

Extra information

SMARTPIRANI™ WIDE RANGE PIRANI TRANSDUCER
Programmable precision vacuum pressure transducer with digital and analog interface
HVPM-5 vacuum pressure transducer, DN16KF, RS-485, Std. Analog out, 15 pin D-sub, unit:mbar, three relays
Measurement range 1×10-6 to 1,333 mbar (7.5×10-7 to 1,000 Torr)
Ultra-wide range and high performance best-in-class MEMS Pirani sensor
Precision gas independent diaphragm sensor from 2 to 1,333 mbar.
Programmable voltage output and digital RS-485 interface
Three solid-state setpoints for process control
User programmable via RS-485
Robust stainless steel flange and enclosure design
Please contact us if other interface or flange connection is desired.
