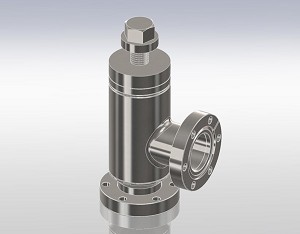

Valves All Metal

Group number:	VA001
Description:	Valves All Metal
Downloads
Manual

Extra information

Specification VMD Valves

Operation Pressure: Atm. < 1x10-10 mbar
Bakeout temperature max: 400°C Open, 300°C Closed
Leak rate: <1x10-10 mbar
Materials exposed to vacuum: SST 304, SST 316, OFHC Copper

Code	Flange	D (D size)	D1 (OD size)	L	L1	L2	Material	Price ex.	Qty
VMD19CF16R	NW16CF	38.1	19.1	38.1	122.2	133	SST 304	€ 550,00	×1
VMD19S	NW16CF						Copper seal pad	€ 24,00	×1
VMD38CF35R	NW35CF	54	38.1	62.5	169	188	SST 304	€ 950,00	×1
VMD38S	NW35CF						Copper seal pad	€ 38,00	×1
VMD63CF63R	NW63CF	76.2	63.5	105	276	304	SST 304	€ 1.698,00	×1
VMD63S	NW63CF						Copper seal pad	€ 146,00	×1

= in stock. = out of stock.
