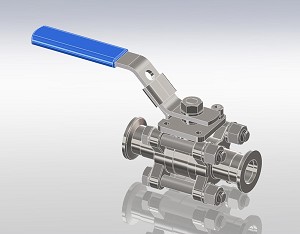

Valves Ball

Group number:	VAB001
Description:	Valves Ball

Leak rate 9.0 x 10 -9 mbar-l/sec
Pressure: Max 56.8 PSI
Temp: Operating temperature 150 C Max

Code	Flange	D (D size)	L	L1	Material	Type 1	Price ex.	Qty
KF16/BV	NW16KF	19.1	92	64.4	316L		€ 74,00	×1
KF16/BVS	NW16KF					Ball Valve Spare Seal Kit	€ 17,50	×1
KF25/BV	NW25KF	25.4	107	91	316L		€ 117,00	×1
KF25/BVS	NW25KF					Ball Valve Spare Seal Kit	€ 31,00	×1
KF40/BV	NW40KF	38.1	130	119.2	316L		€ 215,00	×1
KF40/BVS	NW40KF					Ball Valve Spare Seal Kit	€ 50,00	×1
KF50/BV	NW50KF	50.8	151	134	316L		€ 299,00	×1
KF50/BVS	NW50KF					Ball Valve Spare Seal Kit	€ 75,00	×1

= in stock. = out of stock.
