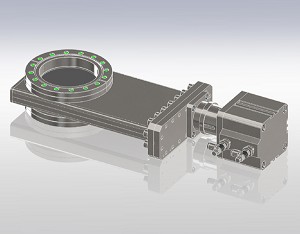

Gate Valves CF

Extra information

M = Manual
P = Pneumatic
BS = Bonnet Seal
V = Viton
OFHC = Oxygen Free Hard Copper

Specifications:
• Material: Body SST304, Cariage SST304, Gate SST304
• Hellium leak rates at 1 atm differential: <5x 10-10 std cc / sec for Viton bonnet Seal
• Bakeable Temp.: Open: 200ºC Viton bonnet seal, Close: 150ºC Viton bonnet Seal
• Pressure range: 1.3 - 10 -10 mbar ~ ATM
• Maximum ?P: 25 mbar before opening
• Operating air pressure: 4-6 kg/cm2
• Standard seal: Gate Viton, Bonnet OFHC
• Size: 2" to 8 "
• Surface Treatment: Scotch Polished

Options:
• Roughing port
• Other Material Gate O'ring seal
• Position indicator
• Pneumatic control solenoid Valve
