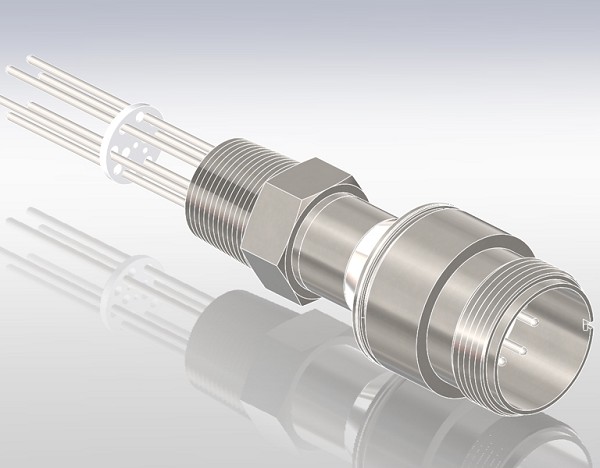

Pressure NPT Multipin Con 6Pin 7A - ½"

Extra information

D = Tube Size
Specifications - Multipin Connector

Materials:
-- NPT Fitting: 316 SST
-- Conductor: Alumel
-- Insulation: Alumina ceramic
-- Magnetic Materials: Yes
Voltage Rating 700 V DC
Current Rating: 7 AMPS per pin
Temperature Range -269°C to 450°C
Pressure @ 20 °C:
-- 4 Pin: 600 PSIG (41 Bar)
-- 6 Pin: 550 PSIG (38 Bar)
-- 10 Pin: 500 PSIG (34 Bar)
