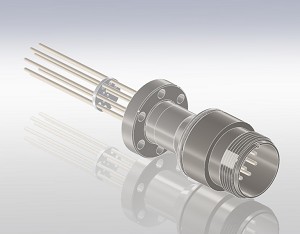

Circ. Single - 35. Pin - CF35

Extra information

Specifications:
Materials:
-- Shell: SST 304
-- Pins: Alumel
-- Insulation: Alumina ceramic
-- Magnetic Materials: Yes
Current Rating: 7 AMPS per pin
Temperature Range: -269°C to 450°C, ISO KF -25°C to 205°C
Pressure @ 20°C ISO KF 0 PSIG
4 Pin: 600 PSIG (41 Bar)
6 Pin: 550 PSIG (38 Bar)
10 Pin: 500 PSIG (34 Bar)
20 Pin: 125 PSIG (8.6 Bar)
35 Pin: 50 PSIG ( 3.4 Bar)
