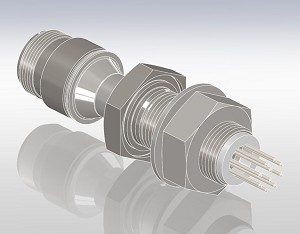

EF Multipin Connector Baseplate 10Pin

Extra information

Specifications:
• Materials
.. Pin: Alumel
.. Insulation: Alumina ceramic
.. Magnetic Materials: Yes
.. O- ring: Viton®
.. Bolt: 304 Stainless steel
• Voltage Rating 700 V DC
• Current Rating 7 Amps per pin
• Temperature Range
.. -25º C to 205º C
• Pressure @ 20ºC
.. 200 PSIG (14 Bar)
• Leak Rate <1x10-10 mbar L/s (He)
